Prerequisites

Before starting, ensure you have:

  • Clockspring configured with SSL per the Clockspring SSL Setup Guide

  • The Clockspring hostname resolves correctly in DNS

  • An Azure AD account with Application Administrator rights (or equivalent for your IdP)

  • The username of at least one user who will be the initial admin

Clockspring only allows one multi-user authentication method at a time. Configuring SAML will override any previous multi-user configuration.
This guide uses Azure AD as the identity provider (IdP). For other IdPs, the core concepts apply but specific steps will differ. Work with your authentication team as needed.

Step 1: Create Azure Enterprise Application

  1. Login to https://portal.azure.com

  2. Search for "Enterprise Applications"

    Enterprise Applications

  3. Click New Application → Create your own application

  4. Name the application (e.g., "Clockspring SAML") and select "Integrate any other application you don’t find in the gallery (Non-gallery)"

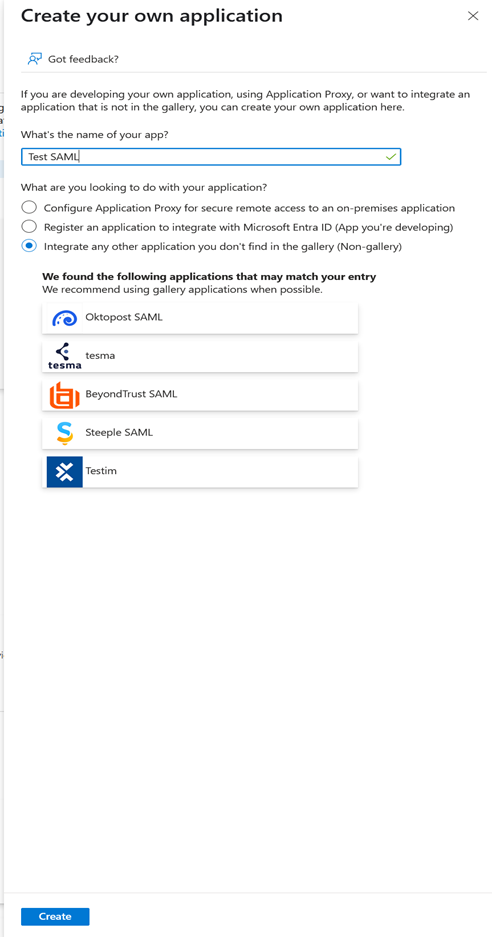

    Create Enterprise Application

  5. Click Create

Step 2: Configure SAML Single Sign-On

  1. In the application, go to Manage → Single sign-on → SAML

  2. In Basic SAML Configuration, click Edit and configure:

Setting Value

Identifier (Entity ID)

Choose a unique name (e.g., clockspring-saml). You’ll need this later.

Reply URL

https://<clockspring-host>:8443/nifi-api/access/saml/login/consumer

Sign-on URL

https://<clockspring-host>:8443

Logout URL

https://<clockspring-host>:8443/nifi-api/access/saml/logout

  1. Click Save

Example SAML Configuration

Step 3: Configure User Claims

Claims are key/value pairs sent from Azure to Clockspring via the SAML token. Clockspring uses the unique user identifier to determine the username.

  1. Click Edit next to Attributes & Claims

  2. Click on Unique User Identifier (Name ID)

  3. Set the Source attribute based on your desired username format:

Source Attribute Username Format

user.mail

Email address (e.g., john.smith@example.com)

user.userprincipalname

UPN format (e.g., john.smith@example.com)

user.onpremisesamaccountname

Windows login name (e.g., john.smith)

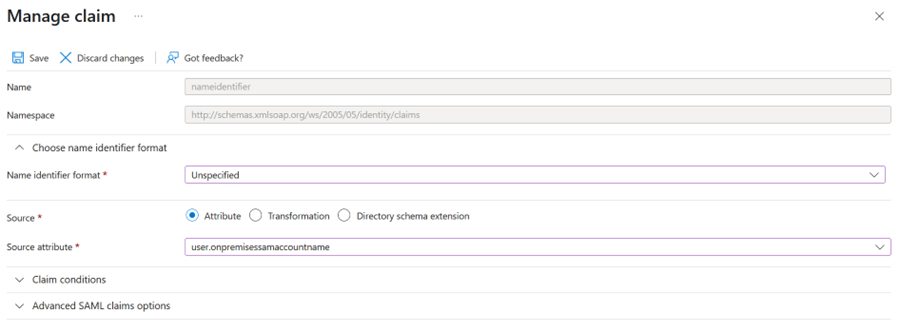

Example Claim

  1. Click Save

  2. Copy the App Federation Metadata URL from the SAML Certificates section. You’ll need this for Clockspring configuration.

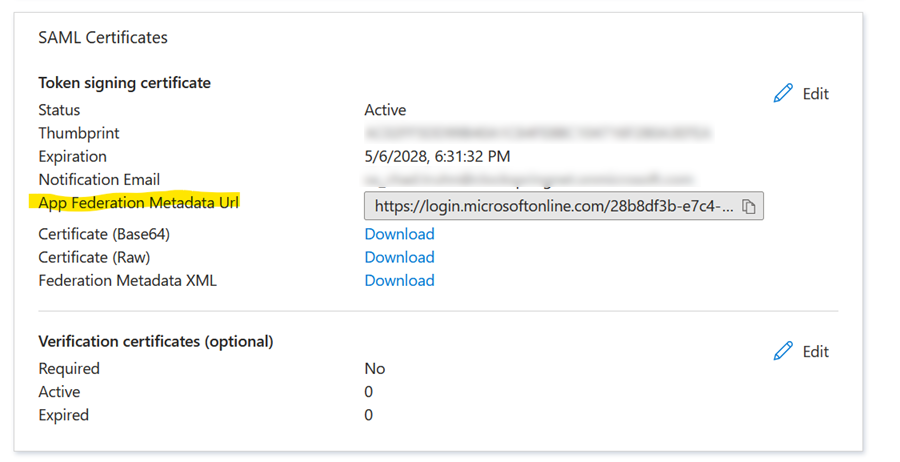

Metadata URL

Step 4: Assign Users or Groups

By default, Azure requires explicit user/group assignment before users can authenticate.

  1. Go to Users and groups → Add user/group

  2. Click None Selected under Users

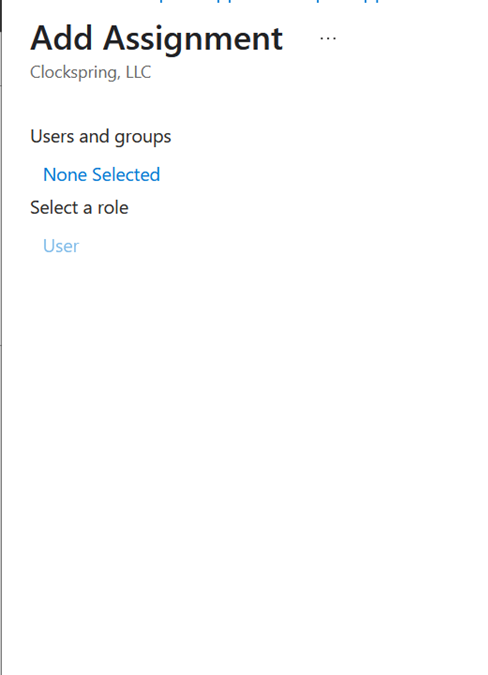

    User Assignment

  3. Select the users or groups that should have access to Clockspring

  4. Click Assign

Step 5: Configure Clockspring

Edit /opt/clockspring/conf/clockspring.properties:

vi /opt/clockspring/conf/clockspring.properties

Set the following properties:

nifi.security.user.authorizer=managed-authorizer
nifi.security.user.login.identity.provider=

nifi.security.user.saml.idp.metadata.url=https://login.microsoftonline.com/<tenant-id>/federationmetadata/saml
nifi.security.user.saml.sp.entity.id=clockspring-saml
nifi.security.user.saml.group.attribute.name=groups

Replace:

  • <tenant-id> with the metadata URL you copied from Azure

  • clockspring-saml with the Entity ID you configured in Azure

Step 6: Configure Initial Admin Users

Edit /opt/clockspring/conf/authorizers.xml:

vi /opt/clockspring/conf/authorizers.xml

Add your initial users to the file-user-group-provider section:

<userGroupProvider>
    <identifier>file-user-group-provider</identifier>
    <class>org.apache.nifi.authorization.FileUserGroupProvider</class>
    <property name="Users File">./conf/users.xml</property>
    <property name="Initial User Identity 1">john.smith</property>
    <property name="Initial User Identity 2">jane.doe</property>
</userGroupProvider>

Set the initial admin in the file-access-policy-provider section:

<accessPolicyProvider>
    <identifier>file-access-policy-provider</identifier>
    <class>org.apache.nifi.authorization.FileAccessPolicyProvider</class>
    <property name="User Group Provider">file-user-group-provider</property>
    <property name="Authorizations File">./conf/authorizations.xml</property>
    <property name="Initial Admin Identity">john.smith</property>
</accessPolicyProvider>
The usernames must match exactly what the IdP returns. Check the claim configuration in Step 3 to determine the format.

Step 7: Apply Changes

Remove the old authorization files so Clockspring rebuilds them with the new settings:

rm /opt/clockspring/conf/users.xml /opt/clockspring/conf/authorizations.xml

Restart Clockspring:

sudo systemctl restart clockspring

Step 8: Verify Login

Navigate to https://<clockspring_host>:8443/canvas. You should be redirected to Azure AD for login.

Troubleshooting

Redirect loop or "AADSTS50011" error

The Reply URL in Azure doesn’t match what Clockspring expects. Verify:

"User not found" or no permissions after login

The username from Azure doesn’t match the Initial Admin Identity:

  1. Check logs/application.log for the actual username being received

  2. Look for lines containing "identity" to see the exact format

  3. Update authorizers.xml to match that format

  4. Delete users.xml and authorizations.xml, then restart

"SAML response is not valid" error

  • Check that the Clockspring server’s clock is synchronized (SAML tokens are time-sensitive)

  • Verify the Entity ID in Clockspring matches what’s configured in Azure

  • Ensure the metadata URL is accessible from the Clockspring server

User can log in but has no permissions

This is different from "user not found" - the user is recognized but lacks access:

  1. Log into Clockspring as the initial admin

  2. Go to the hamburger menu → Policies

  3. Grant the user appropriate access to the canvas and components

Testing SAML configuration

You can test the SAML configuration without restarting by checking if Clockspring can fetch the IdP metadata:

curl -k "https://login.microsoftonline.com/<tenant-id>/federationmetadata/2007-06/federationmetadata.xml"

If this fails, there may be a network or firewall issue preventing Clockspring from reaching Azure.

SAML Property Reference

Property Description

nifi.security.user.saml.idp.metadata.url

URL to the IdP’s SAML metadata (required)

nifi.security.user.saml.sp.entity.id

Unique identifier for Clockspring as a Service Provider (must match IdP configuration)

nifi.security.user.saml.group.attribute.name

Name of the SAML attribute containing group memberships

nifi.security.user.saml.identity.attribute.name

Override the SAML attribute used for user identity (default: NameID)

nifi.security.user.saml.single.logout.enabled

Enable SAML Single Logout (true/false)

nifi.security.user.saml.request.signing.enabled

Sign SAML authentication requests (true/false)

nifi.security.user.saml.want.assertions.signed

Require signed SAML assertions (true/false)

nifi.security.user.saml.authentication.expiration

How long sessions last (e.g., 12 hours)
